Sa Recirculating Water Chiller For Laser 3d Printers

S&A recirculating water chiller for laser 3d printers
A customer is interested in S&A recirculating water chiller for cooling laser 3d printers.
S&A chillers’ warranty is 2 years.

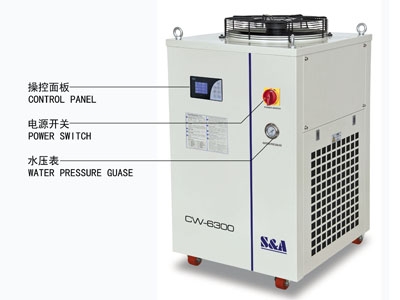

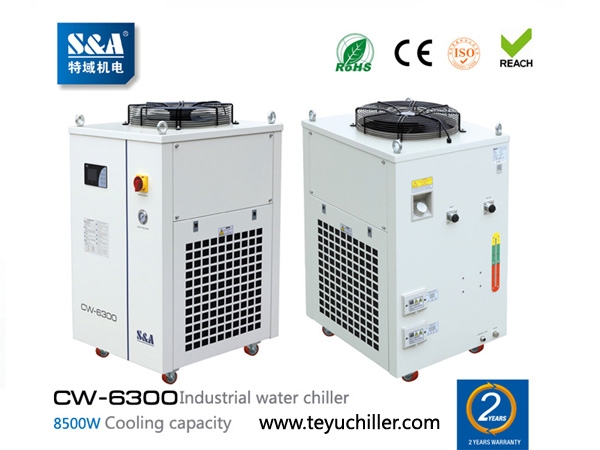

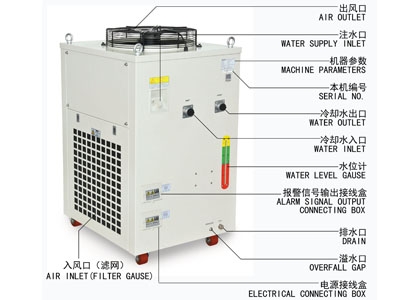

S&A CW-6300 series is high-precision compression refrigeration water chiller,with intelligent temperature control,completed configuration,perfect protection and alarm system.S&A industrial water chillers are popular for its 2 temperature control modes as constant temperature and intelligent temperature control. Under intelligent mode, the water temperature is adjusted according to ambient temperature. With that 1 key solution, customers no longer need to worry about the water temperature adjustment of seasonal changes.
CW-6300 features
1. 8500W cooling capacity; optional environmental refrigerant;
2.±1? precisely temperature control;
3.The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
4.Multiple alarm functions compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
5.Multiple power specifications; CE,RoHS and REACH approval;
6. The chiller supports the Modbus-485 communication protocol, which can realize the communication between the laser system and multiple chillers. It can mainly realize two functions to monitor the working state of the chiller and modify the parameters of the chiller.7.Long working life and simple operation; Optional heater and water filter.
CW-6300 parameter
Voltage1P 220V/3P 380V; Frequency 50/60Hz; Refrigerant R-22 / R-410a
Pump power 0.37~1.1KW; Tank capacity45L
Max. lift 28~53M; Max. flow 70L/min- 116L/min
N.W 165Kgs; G.W 210Kgs;
Dimension 83 X 65 X 117 cm (L X W X H); Packing dimension 111 X 85 X 140 cm(L X W X H)
About S&A Brand
S&A(TEYU) was founded in 2002. After 15 years of development, the headquarter covers an area of 18,000 square meters, and has about 250 employees. With annual production capacity for cooling system up to 60,000 units, the product has been sold to more than 50 countries and regions. S&A has established a complete and strict quality management system to realize the strict control on the acquisition of components, the equipment production, the delivery and the after-sales service. As the saying goes, sharp tools make good work. Since condenser is the center of an industrial water chiller, S&A has invested millions of money in condenser production equipment and made strict control on a series of processes, including fins, bends and welding etc. to secure the quality of condenser. Also the introduction of welding robots has significantly improved and perfected the welding procedure. Therefore it can efficiently prevent the machinery breakdown caused by solder skips. This is also the main reason that why S&A water chiller has stable quality.
CONTACT S&A
SKYPE teyuchiller ; Email marketing@teyu.com.cn;
Website http//www.teyuchiller.com
TE+86-20-89301885; FAX+86-20-84309967
