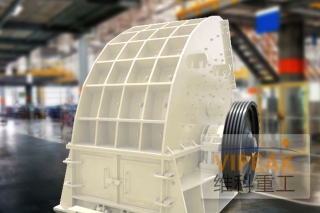

PCZ series hammer crusher is a new type of stone crusher based on PC series. In accordance with feedback from our clients and mining industry development trend, and we took the experimental data from stone crushing test base into account, PCZ series hammer crusher has been launched by VIPEAK Heavy Industry. Compared with other hammer crusher, PCZ hammer crusher has many advantages such as lager diameter of hammer pin, heavier hammer and higher speed of linear velocity. The difficulties such as serious abrasion of hammer, break of hammer pin have been overcame. PCZ hammer crusher has big feed size capacity and better reduction ratio, otherwise, it costs lower in maintenance than traditional types. All these characteristics make PCZ hammer crusher the first choice in mining industry.


Working Principle of PCZ series Hammer Crusher
The motor drives the rotor rotates of the Hammer Crusher at a high speed through the belt, and on the rotor there are series hammers. When the materials get into the working area of hammers, they are crushed by the rotating hammers of the Hammer Crusher with high rotation speed, the products which are crushed to meet the required size can be discharged by the outlet and become the final products, the large size products are brought back to the crushed area by the hammers of the Hammer Crusher for being re-crushed until they reached the required size.


Product Advantages of Heavy Hammer Crusher Hammer Mill
Heavy hammer crusher is applicable primarily to process big raw material, and output size of final product smaller than other primary crusher. On the crushing principle, single stage replaces multistage crushing process, finally low-cost operating could be achieved, so that 35% of cost can be saved. It is a low consumption and low cost machinery in short.
PCZ hammer crusher is called heavy hammer crusher also. It is developed based on mechanical principle of ordinary hammer headplate hammer types of stone crushing machines, and it is latest crushing machine which changed the way of adjusting output size to reduce abrade of hammer head inside crushing cavity. The hammer head service life has been increased by 4-6 times. This is a great breakthrough of crushing technology to make machine more effective.
PCZ heavy hammer crusher has better applicability and economical efficiency to process the brittleness material less than medium hardness, and after optimization designing, PCZ has much more ability to against impact to reduce maintenance rate.
PCZ heavy hammer crusher can be fed some water to reduce dust pollution to protect workers and environment.
